STE -High Elongation Steel Cord Conveyor Belt

Energy-saving

Replacement of heavy-duty fabric belt

Ideal for small turning radius

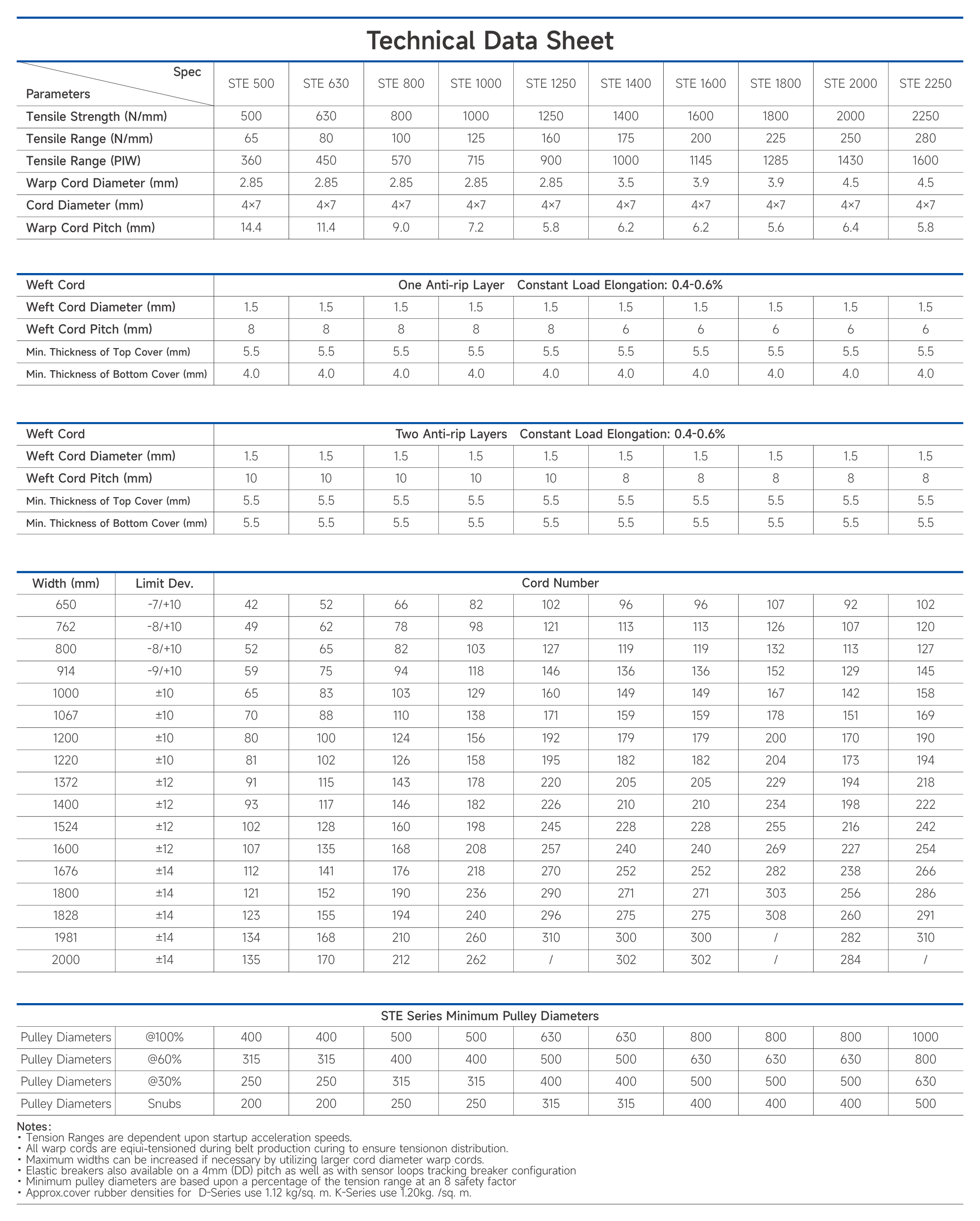

Technical Details

Special belt construction enables lighter weight with high strength.

4*7 highly elastic and permeable steel cords are applied in warp direction.

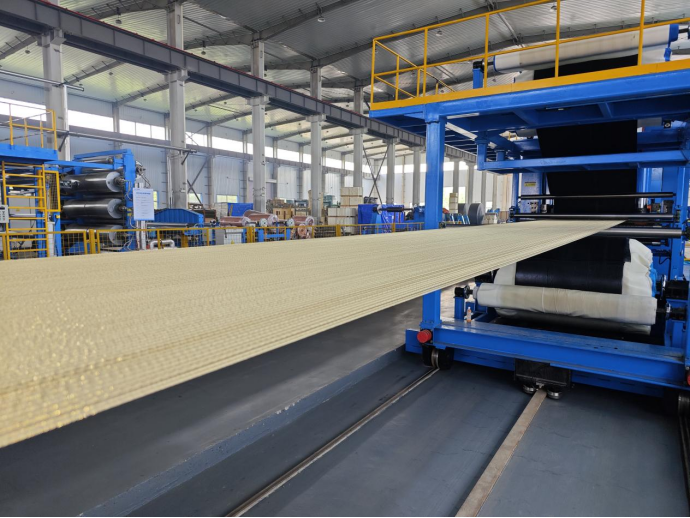

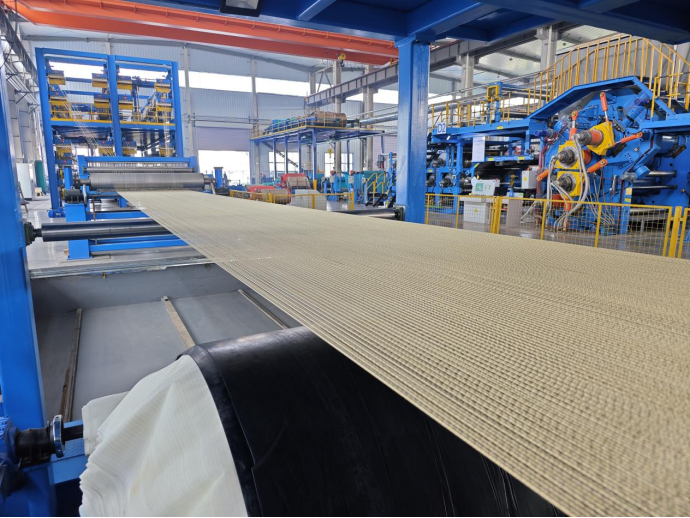

Steel cord laminating inline under tension and hot vulcanization as per DIN/ISO standard.

Features

Lighter weight with high strength.

High elasticity, excellent impact resistance, troughability and straightness.

Suitable for small curve radius applications.

Accommodate to smaller pulleys to reduce equipment investment.

High splicing strength, long splicing fatigue life, available for finger splicing by hot curing.

Cover properties available to be customized for different applications.

Alternative to fabric belt without significant modification of the conveyor system.

The STE belt is suitable for use with Crowned pulleys to effectively prevent belt mistracking by self alignment.

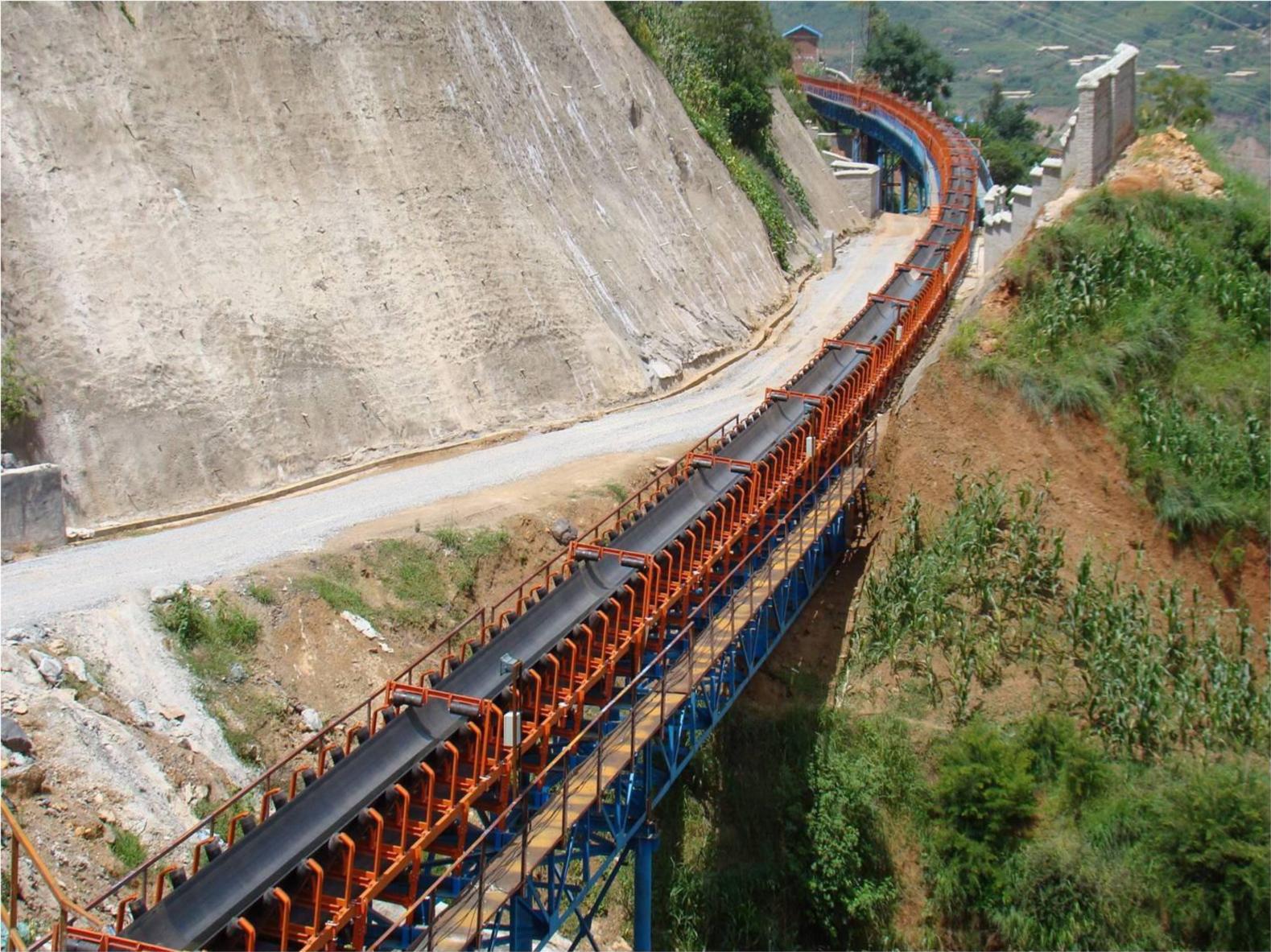

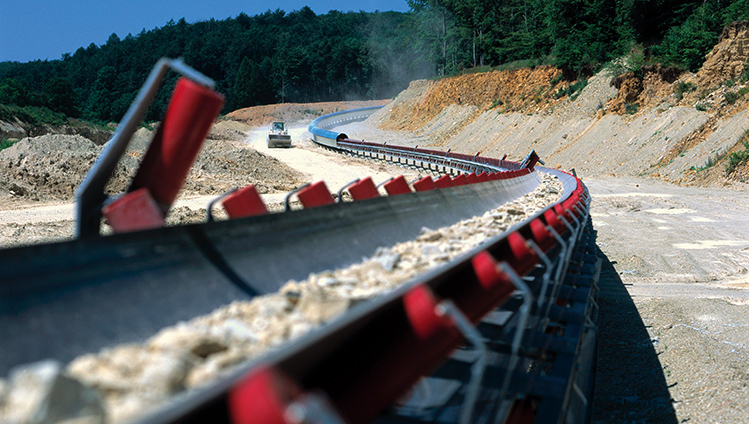

Applications

The STE conveyor belt is an ideal alternative of the fabric conveyor belt especially in applications

where elongation or troughability of a fabric belt fails to meet the requirement.

Mining  Steel plant  Habor Cement plant   Power plant

Grain and salt industry   Surface conveyor system
